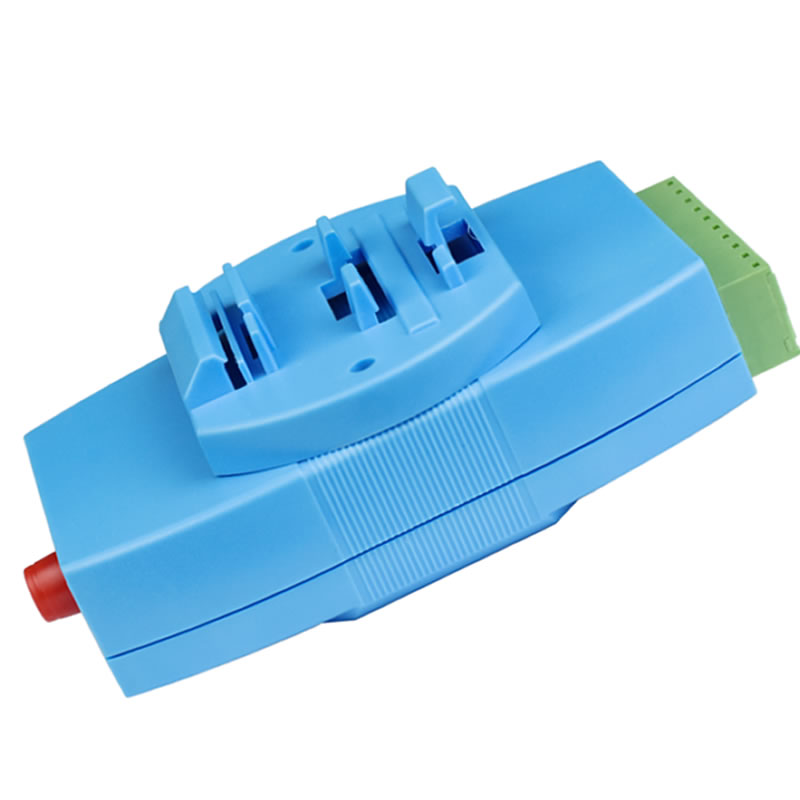

Integrated circuits based on independent intellectual property rights; Provide 1-2 CAN bus interfaces and 1 optical port; CAN data fully transparent communication, adaptive baud rate, no need for any settings; The maximum number of CAN interface nodes is 128; The maximum speed of CAN interface is 0-1Mbps; The CAN interface speed complies with international CAN1.0 and CAN2.0 standards; DC9-55V or AC7-50V wide range power supply, with automatic polarity detection function, no need to distinguish positive and negative poles during installation; Provide DIN 35mm rail installation or wall mounted installation methods; CAN interface with lightning protection, lightning protection up to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 8/20 μ s, open circuit peak output voltage 6KV standard
Optical port: 1
Fiber optic: single fiber, double fiber
Fiber optic interface: FC/SC/ST optional
Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single-mode
No relay transmission distance: 20~120Km
Typical transmission power: Single mode 1310/1550nm: ≥ -9dBm
Multimode 850nm: -18dBm
Multimode 1310nm: -25dBm
Acceptable sensitivity range: -28dBm~40dBm
CAN bus interface
Standard protocol: Compliant with international CAN1.0 and CAN2.0 standards
Speed: 0-1000Kbps
Physical interface: Industrial terminal

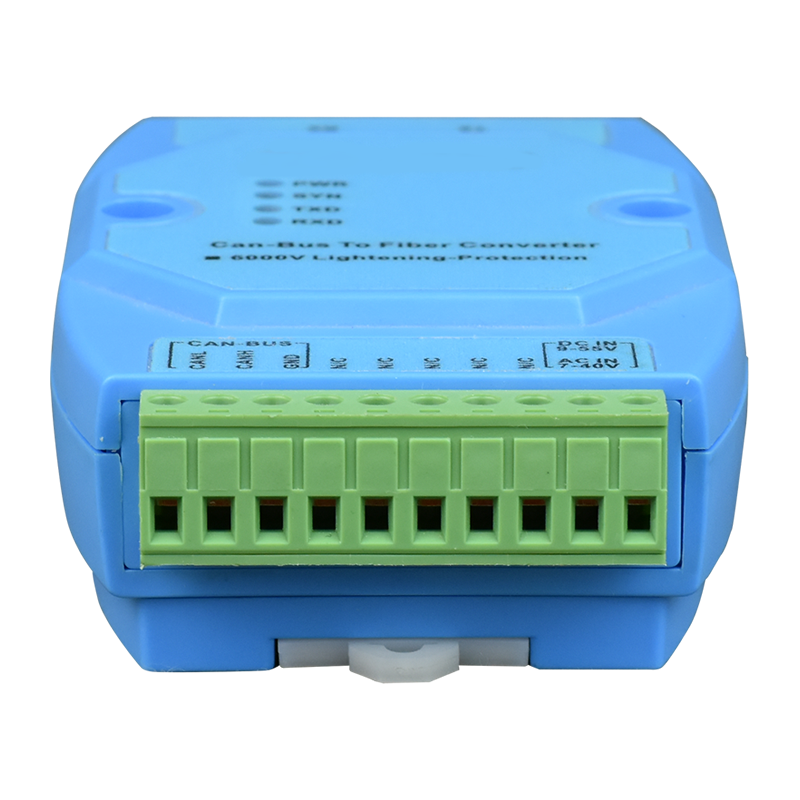

CAN definition: CANH, CANL, GND
Electrical and mechanical characteristics
System power supply: AC7V~50V; DC9-55V；
Power consumption: ≤ 2W

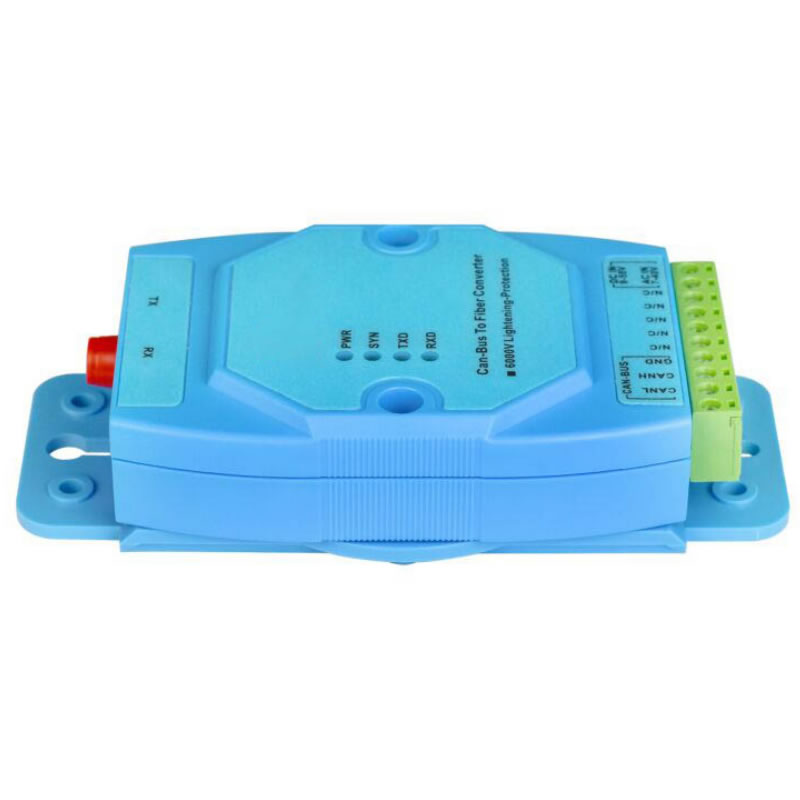

Appearance structure: (length x width x height) 72 * 125 * 26mm Adam module
Environmental indicators
Working temperature: -40 ℃ -85 ℃
Storage temperature: -40 ℃ -85 ℃
Working humidity: 0% -95% (no condensation)
MTBF：＞100, 000 hours
